Stories Cube
Full-screen stories that turn to the next person like the faces of a cube.

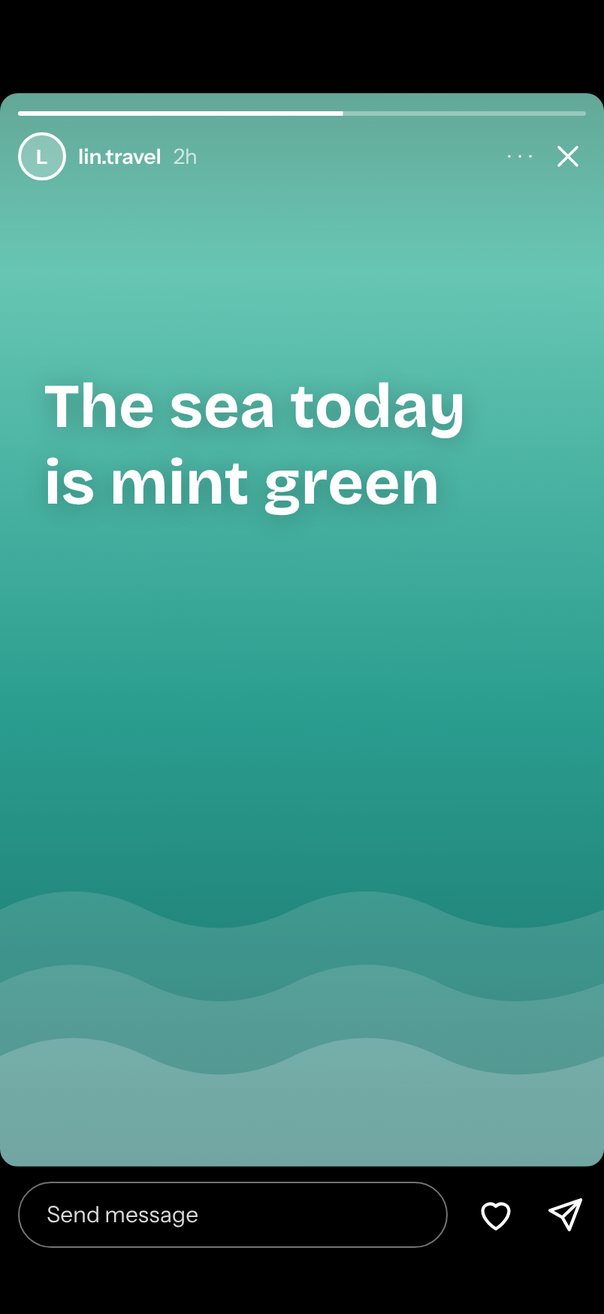

Live demo. Drag it, tap it.
How it works
itemSizeis the width of the 9:16 page, anditemAnimationjust lines the pages up side by side and hides any page at ±1 or beyond.- Inside each page,
relativeProgresssetsrotateYto value × 90° withperspective900 per 330 pt of width, turning on the right edge when leaving and on the left edge when entering, so the faces meet like a cube. onSnapToItemrestarts the bar over the 4000 msautoplayInterval,onScrollStartfreezes it, and a tap on the left third or the rest of the card callsref.prev()orref.next().
Uses
Full source
import { SceneScreen, useScene } from "@/features/scenes/kit";
import { LinearGradient } from "expo-linear-gradient";
import * as React from "react";
import { Pressable, StyleSheet, Text, View } from "react-native";
import { Gesture, GestureDetector } from "react-native-gesture-handler";
import Animated, {
Easing,
type SharedValue,
cancelAnimation,
useAnimatedStyle,
useSharedValue,
withTiming,
} from "react-native-reanimated";
import {
Carousel,
type CarouselItemAnimation,
type CarouselRef,
} from "react-native-reanimated-carousel";
import Svg, { Circle, Ellipse, G, Path, Rect } from "react-native-svg";
type Deco = "sea" | "steam" | "track" | "paws" | "code" | "film";
interface Story {
user: string;
time: string;
text: string;
colors: [string, string, string];
angle: number;
deco: Deco;
}
const STORIES: Story[] = [
{
user: "lin.travel",
time: "2h",
text: "The sea today\nis mint green",
colors: ["#7FD6C2", "#2A9D8F", "#1B6F69"],
angle: 180,
deco: "sea",
},
{
user: "chef.mao",
time: "4h",
text: "Beef stew,\nthird time lucky",
colors: ["#F4A261", "#E76F51", "#9C3D2E"],
angle: 160,
deco: "steam",
},
{
user: "daily.run",
time: "5h",
text: "10 km\nat 5′12″ pace",
colors: ["#3A0CA3", "#4361EE", "#4CC9F0"],
angle: 200,
deco: "track",
},
{
user: "cat.mochi",
time: "7h",
text: "Her Majesty\napproves today",
colors: ["#FFD6E0", "#FFB3C6", "#F48FB1"],
angle: 180,
deco: "paws",
},
{
user: "rn.weekly",
time: "9h",
text: "RNRC 5.2\nis out",
colors: ["#0F172A", "#312E81", "#6D28D9"],
angle: 150,
deco: "code",
},
{
user: "film.zz",
time: "12h",
text: "Autumn,\non film",
colors: ["#D4A373", "#A0522D", "#5C3317"],
angle: 180,
deco: "film",
},
];
const INTERVAL = 4000;
const FOOTER = 64;
const EASE_OUT_QUART = Easing.bezier(0.25, 1, 0.5, 1);
// A CSS gradient angle as expo-linear-gradient start / end points.
function direction(deg: number) {
const a = (deg * Math.PI) / 180;
const x = Math.sin(a) / 2;
const y = -Math.cos(a) / 2;
return { start: { x: 0.5 - x, y: 0.5 - y }, end: { x: 0.5 + x, y: 0.5 + y } };
}
const wave = (y: number) =>
`M0 ${y}Q40 ${y - 20} 80 ${y}T160 ${y}T240 ${y}T330 ${y}V200H0Z`;
const PAWS = [
[60, 150],
[120, 110],
[190, 140],
[250, 90],
];
// Illustrations drawn in a 330 x 200 box at the bottom of the card.
function DecoArt({ kind }: { kind: Deco }) {
switch (kind) {
case "sea":
return (
<>
<Path d={wave(60)} fill="#FFFFFF" fillOpacity={0.13} />
<Path d={wave(100)} fill="#FFFFFF" fillOpacity={0.13} />
<Path d={wave(140)} fill="#FFFFFF" fillOpacity={0.19} />
</>
);
case "steam":
return (
<>
<Ellipse
cx={165}
cy={170}
rx={110}
ry={26}
fill="#000000"
fillOpacity={0.19}
/>
<Path d="M70 150Q165 210 260 150Z" fill="#FFFFFF" fillOpacity={0.9} />
<Path
d="M130 120q-16-24 0-48q16-24 0-48M165 120q-16-24 0-48q16-24 0-48M200 120q-16-24 0-48q16-24 0-48"
stroke="#FFFFFF"
strokeOpacity={0.6}
strokeWidth={5}
strokeLinecap="round"
fill="none"
/>
</>
);
case "track":
return (
<>
<Path
d="M30 170C80 40 160 200 210 90S300 40 310 120"
stroke="#FFFFFF"
strokeOpacity={0.8}
strokeWidth={6}
strokeLinecap="round"
strokeDasharray="1 14"
fill="none"
/>
<Circle cx={310} cy={120} r={9} fill="#FDE047" />
</>
);
case "paws":
return (
<G fill="#FFFFFF" fillOpacity={0.5}>
{PAWS.map(([x, y]) => (
<G key={x} transform={`translate(${x} ${y})`}>
<Ellipse cx={0} cy={10} rx={14} ry={11} />
<Circle cx={-13} cy={-6} r={5} />
<Circle cx={-4} cy={-12} r={5} />
<Circle cx={6} cy={-12} r={5} />
<Circle cx={14} cy={-5} r={5} />
</G>
))}
</G>
);
case "film":
// A strip of 35 mm film with three warm frames.
return (
<G transform="rotate(-6 165 110)">
<Rect
x={-20}
y={60}
width={370}
height={96}
rx={4}
fill="#2A1508"
fillOpacity={0.85}
/>
<Path
d={Array.from(
{ length: 19 },
(_, k) =>
`M${-8 + k * 20} 66h10v8h-10zM${-8 + k * 20} 142h10v8h-10z`,
).join("")}
fill="#F3E3C8"
fillOpacity={0.7}
/>
{["#E9C46A", "#D4A373", "#BC6C25"].map((color, k) => (
<Rect
key={color}
x={6 + k * 108}
y={80}
width={100}
height={56}
rx={2}
fill={color}
/>
))}
<Circle cx={150} cy={104} r={11} fill="#FFF3D6" />
<Path
d="M6 136l30-26 22 18 20-14 28 22zM222 136l26-30 24 20 22-12 12 22z"
fill="#5C3317"
fillOpacity={0.55}
/>
</G>
);
default:
return null;
}
}
function Icon({
d,
color = "#FFFFFF",
size = 24,
fill = "none",
}: {
d: string;
color?: string;
size?: number;
fill?: string;
}) {
return (
<Svg width={size} height={size} viewBox="0 0 24 24">
<Path
d={d}
fill={fill}
stroke={color}
strokeWidth={1.8}
strokeLinecap="round"
strokeLinejoin="round"
/>
</Svg>
);
}
const ICONS = {
heart:
"M12 20s-7.5-4.6-7.5-10.2A4.3 4.3 0 0 1 12 7.2a4.3 4.3 0 0 1 7.5 2.6C19.5 15.4 12 20 12 20z",
send: "M21 3.5L10.5 13.5M21 3.5l-6.5 17-4-7-7-4z",
close: "M6 6l12 12M18 6L6 18",
more: "M5 12h.01M12 12h.01M19 12h.01",
};
interface StoryPageProps {
story: Story;
index: number;
card: { width: number; height: number };
relativeProgress: SharedValue<number>;
active: SharedValue<number>;
fill: SharedValue<number>;
}
const StoryPage = React.memo(function StoryPage({
story,
index,
card,
relativeProgress,
active,
fill,
}: StoryPageProps) {
const [liked, setLiked] = React.useState(false);
const s = card.width / 330; // the prototype's card is 330 wide
const S = card.width;
// Cube face: the leaving page turns on its right edge, the entering one on its left edge.
const face = useAnimatedStyle(() => {
const v = relativeProgress.value;
return {
transformOrigin: v < 0 ? "right center" : "left center",
transform: [
{ perspective: 900 * s },
{ rotateY: `${Math.max(-1, Math.min(1, v)) * 90}deg` },
],
};
});
const shade = useAnimatedStyle(() => ({
opacity: Math.min(1, Math.abs(relativeProgress.value)) * 0.7,
}));
const bar = useAnimatedStyle(() => ({
transform: [{ scaleX: active.value === index ? fill.value : 0 }],
}));
return (
<Animated.View style={[{ width: S, height: card.height + FOOTER }, face]}>
<LinearGradient
colors={story.colors}
locations={[0, 0.58, 1]}
{...direction(story.angle)}
style={[styles.card, { height: card.height }]}
>
<LinearGradient
colors={["rgba(0,0,0,0.22)", "rgba(0,0,0,0)"]}
style={styles.scrim}
/>
{story.deco === "code" ? (
<View
style={[
styles.code,
{
top: card.height - 200 * s + 40 * s,
left: 28 * s,
padding: 16 * s,
},
]}
>
<Text
style={[
styles.codeText,
{ fontSize: 14 * s, lineHeight: 22 * s },
]}
>
{"<Carousel\n loop\n itemAnimation={cube}\n/>"}
</Text>
</View>
) : (
<Svg
width={S}
height={200 * s}
viewBox="0 0 330 200"
style={styles.deco}
>
<DecoArt kind={story.deco} />
</Svg>
)}
<Text
style={[
styles.text,
{
top: 150 * s,
left: 24 * s,
right: 24 * s,
fontSize: 34 * s,
lineHeight: 42 * s,
},
]}
>
{story.text}
</Text>
<View style={styles.track}>
<Animated.View style={[styles.bar, bar]} />
</View>
<View style={styles.user}>
<View style={styles.avatar}>
<Text style={styles.avatarText}>{story.user[0].toUpperCase()}</Text>
</View>
<Text style={styles.name}>{story.user}</Text>
<Text style={styles.time}>{story.time}</Text>
<View style={styles.spacer} />
<Icon d={ICONS.more} />
<Icon d={ICONS.close} />
</View>
<Animated.View style={[styles.shade, shade]} />
</LinearGradient>
<View style={styles.footer}>
<View style={styles.reply}>
<Text style={styles.replyText}>Send message</Text>
</View>
<Pressable
accessibilityLabel="Like"
hitSlop={10}
onPress={() => setLiked((on) => !on)}
>
<Icon
d={ICONS.heart}
size={28}
color={liked ? "#FF3B5C" : "#FFFFFF"}
fill={liked ? "#FF3B5C" : "none"}
/>
</Pressable>
<Icon d={ICONS.send} size={28} />
</View>
</Animated.View>
);
});
function StoriesCube() {
const { width, height, insets } = useScene();
const ref = React.useRef<CarouselRef>(null);
const active = useSharedValue(0);
const fill = useSharedValue(0);
// A 9:16 story card above the reply bar, as wide as the screen allows.
const room = height - insets.top - Math.max(insets.bottom, 8) - FOOTER;
const cardHeight = Math.min(Math.round((width * 16) / 9), room);
const card = { width: Math.round((cardHeight * 9) / 16), height: cardHeight };
const startBar = React.useCallback(
(index: number) => {
active.value = index;
fill.value = 0;
fill.value = withTiming(1, { duration: INTERVAL, easing: Easing.linear });
},
[active, fill],
);
React.useEffect(() => startBar(0), [startBar]);
const itemAnimation = React.useCallback<CarouselItemAnimation>(
(value) => {
"worklet";
return {
transform: [
{ translateX: value * card.width + (width - card.width) / 2 },
],
opacity: Math.abs(value) >= 1 ? 0 : 1,
};
},
[card.width, width],
);
// Tap the left third for the previous person, anywhere else on the card for the next.
const tap = React.useMemo(
() =>
Gesture.Tap()
.runOnJS(true)
.onEnd((e, success) => {
if (!success || e.y > card.height) return;
if (e.x < width / 3) ref.current?.prev();
else ref.current?.next();
}),
[card.height, width],
);
const renderItem = React.useCallback(
({
item,
index,
relativeProgress,
}: {
item: Story;
index: number;
relativeProgress: SharedValue<number>;
}) => (
<StoryPage
story={item}
index={index}
card={card}
relativeProgress={relativeProgress}
active={active}
fill={fill}
/>
),
[card.width, card.height, active, fill],
);
return (
<View
style={[
styles.screen,
{ paddingTop: insets.top, paddingBottom: Math.max(insets.bottom, 8) },
]}
>
<GestureDetector gesture={tap}>
<View collapsable={false}>
<Carousel
ref={ref}
data={STORIES}
loop
autoplay
autoplayInterval={INTERVAL}
itemSize={card.width}
style={{ width, height: card.height + FOOTER }}
animation={{
type: "timing",
duration: 700,
easing: EASE_OUT_QUART,
}}
itemAnimation={itemAnimation}
onScrollStart={() => cancelAnimation(fill)}
onSnapToItem={startBar}
renderItem={renderItem}
/>
</View>
</GestureDetector>
</View>
);
}
export default function Scene() {
return (
<SceneScreen
background="#000000"
statusBar="light"
fonts={[
"Bricolage-Bold",
"Instrument-Regular",
"Instrument-SemiBold",
"Instrument-Bold",
"JetBrainsMono-Regular",
]}
>
<StoriesCube />
</SceneScreen>
);
}
const styles = StyleSheet.create({
screen: { flex: 1, justifyContent: "center" },
card: { borderRadius: 12, overflow: "hidden" },
scrim: { position: "absolute", left: 0, right: 0, top: 0, height: 120 },
deco: { position: "absolute", left: 0, bottom: 0 },
code: {
position: "absolute",
borderRadius: 12,
backgroundColor: "rgba(0,0,0,0.35)",
},
codeText: { fontFamily: "JetBrainsMono-Regular", color: "#C4B5FD" },
text: {
position: "absolute",
fontFamily: "Bricolage-Bold",
color: "#FFFFFF",
textShadowColor: "rgba(0,0,0,0.25)",
textShadowOffset: { width: 0, height: 2 },
textShadowRadius: 16,
},
track: {
position: "absolute",
left: 12,
right: 12,
top: 12,
height: 3,
borderRadius: 2,
overflow: "hidden",
backgroundColor: "rgba(255,255,255,0.35)",
},
bar: { flex: 1, backgroundColor: "#FFFFFF", transformOrigin: "left center" },
user: {
position: "absolute",
left: 12,
right: 12,
top: 26,
flexDirection: "row",
alignItems: "center",
gap: 8,
},
avatar: {
width: 32,
height: 32,
borderRadius: 16,
borderWidth: 2,
borderColor: "#FFFFFF",
backgroundColor: "rgba(255,255,255,0.25)",
alignItems: "center",
justifyContent: "center",
},
avatarText: { fontFamily: "Instrument-Bold", fontSize: 13, color: "#FFFFFF" },
name: {
fontFamily: "Instrument-SemiBold",
fontSize: 14,
lineHeight: 18,
color: "#FFFFFF",
},
time: {
fontFamily: "Instrument-Regular",
fontSize: 14,
lineHeight: 18,
color: "rgba(255,255,255,0.7)",
},
spacer: { flex: 1 },
shade: {
...StyleSheet.absoluteFillObject,
backgroundColor: "#000000",
pointerEvents: "none",
},
footer: {
height: FOOTER,
flexDirection: "row",
alignItems: "center",
gap: 18,
paddingHorizontal: 12,
},
reply: {
flex: 1,
height: 44,
borderRadius: 22,
borderWidth: 1,
borderColor: "rgba(255,255,255,0.45)",
justifyContent: "center",
paddingHorizontal: 18,
},
replyText: {
fontFamily: "Instrument-Regular",
fontSize: 15,
lineHeight: 20,
color: "rgba(255,255,255,0.85)",
},
});
